Raspberry Pi 3 Overclocking Enclosure

July 31, 2016 by Jack Zimmermann 3 Comments

Raspberry Pi 3 Overclocking Case Enclosure

The results are in:
I’ve been very busy with different projects, and one of them requires a custom enclosure. So I thought it would be an excellent excuse to learn Fusion 360. When the Raspberry Pi 3 came out, I did some overclocking experiments. But I settled with just passive cooling with some small aluminum heatsinks. But after seeing some tests done with a more massive copper heatsink combined with a cooling fan, I decided that I wanted to build a case with a silent fan with enough room for a large heatsink. I need it for my NTP server at ntp.jacken.se to get better performance.

[Read more…]

Raspberry Pi Stratum-1 NTP Server Statistics

April 12, 2016 by Jack Zimmermann Leave a Comment

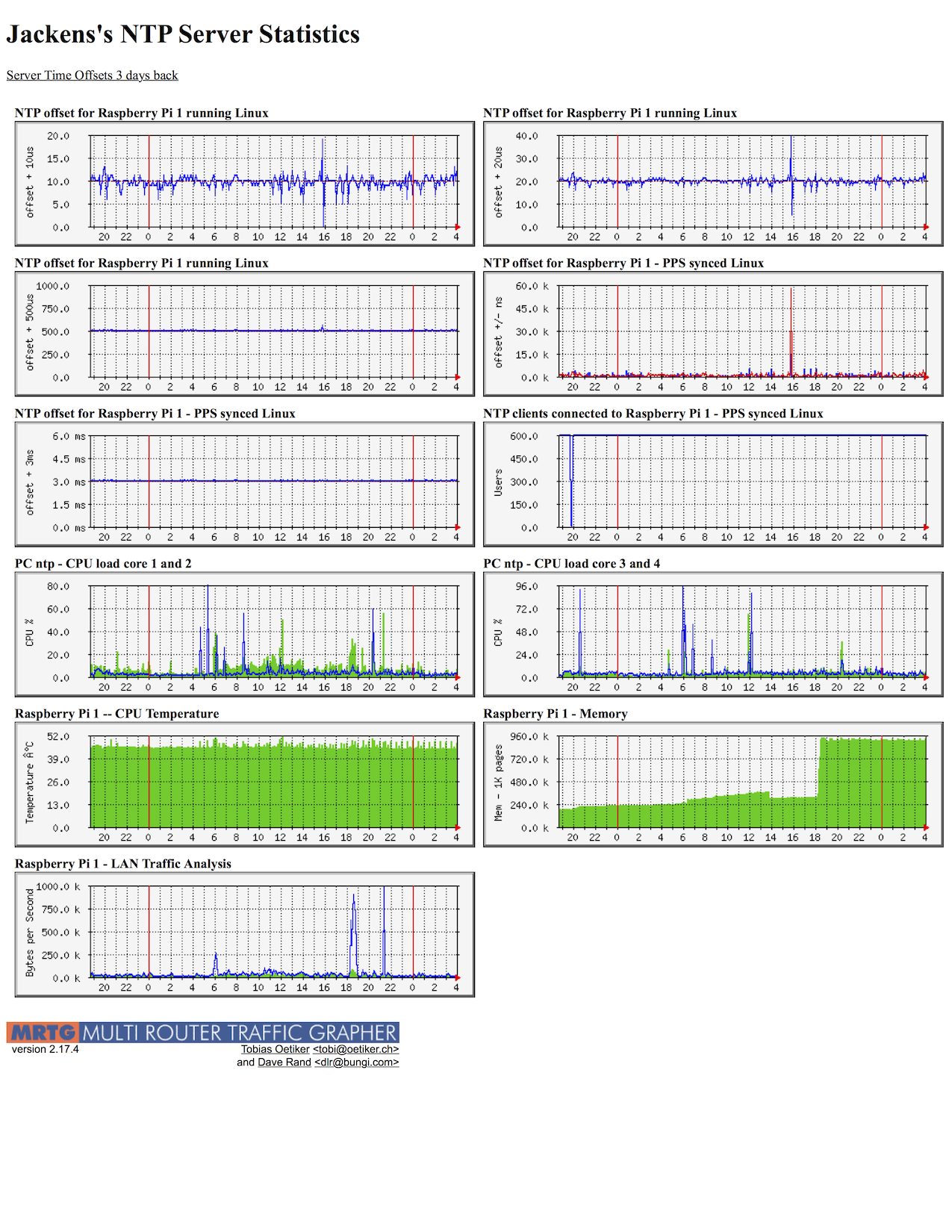

After becoming a full-fledged time-nut (I’m compiling a new Linux kernel on my second NTP server as we speak), I have started to use the statistics that I usually install on a server just to keep a check on it. Sure, when installing something like MRTG, it’s great to see if something is clogging the system, but mostly, it’s unused. But when working with an NTP server a lot of factors start to make a difference. The temperature of the processor (the whole computer actually, mostly due to crystal drift), the load of the CPU’s, etc.

[Read more…]

Raspberry Pi 3 Overclocking

March 2, 2016 by Jack Zimmermann 83 Comments

Warning: as of yet, there is no official support for overclocking the Raspberry Pi 3, so you could damage your small computer. Just a reminder.

Update: I’ve managed to make a DIY heatsink for the Raspberry Pi 3 for $4, and it’s running stable at 1.5GHz. Click here to read.

The new version of Raspberry Pi 3 was released yesterday, so I naturally had to get two. I’m using two as Stratum-1 NTP servers, and with the old Raspberry Pi 2, I had hit the roof when it came down to getting better time resolution. So when I read that a new 50% faster version had been released, I raced to the nearest store and got a couple. I have one experimental NTP server that isn’t handing out time on the internet and another one that is the primary server, connected to the NTP Pool Project.

I installed the experimental Raspberry Pi 3 first, so I could test performance and try to overclock it. And it went very well.

[Read more…]

Increase Pulse Width 1 PPS signal from GPSDO

January 28, 2016 by Jack Zimmermann 3 Comments

Update: You can download the Eagle PCB files for the PPS Pulse Width Extender here.
The PCB is made to fit the Hammond 1455C802BK enclosure.

I have two Stratum-1 NTP servers using Raspberry Pi 2’s as servers. But the two setups are entirely different.
My primary NTP Stratum-1 server is available at ntp.jacken.se, but it is also in the .se pool of ntp.org. ~~It’s a Raspberry Pi 2~~ I use a Raspberry Pi 3 that I have connected a U-Blox Neo-7 GPS receiver. But I’m not using the 1 PPS signal coming out of the U-Blox. I have a Trimble GPSDO that I bought from eBay. The unit has two 10 MHz lab reference outputs and one 1 PPS output. But after measuring the signal coming out from the GPSDO, I realized that the timing speed for the seconds “Tick” was only 10 µsec which is way to fast for the Raspberry Pi to pick up as an interrupt on one of the GPIO pins. So I built a pulse extender, making the pulse around 250 milliseconds instead. And now the Raspberry Pi picks up the pulse without problems. Some GPSDO units can set the pulse width by programming the unit via a serial port, but I can’t find that feature on this unit (which is poorly documented and was OEM made for some other manufacturer), so I had to do it with hardware. So how does it look when crunching the numbers on it?

[Read more…]

Raspberry Pi NTP Server LCD Status Display

January 12, 2016 by Jack Zimmermann 1 Comment

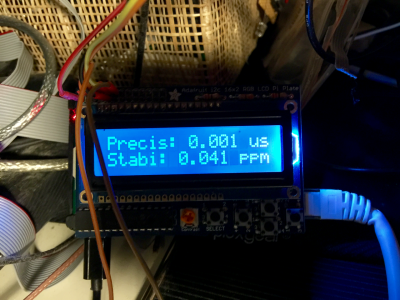

The last couple of weeks I’ve been busy building a ~~Raspberry Pi 2~~ Raspberry Pi 3 connected to my Trimble GPSDO using the 1 PPS output. The Trimble unit synchronizes with the atomic clocks onboard the GPS satellites, and the precision is fantastic! I bought the GPSDO to get a 10 MHz lab reference for my measure equipment, but after reading an article about Time-Nuts, people obsessed with measuring time as accurately as possible, and one of my friends showed me pictures of their new Stratum-1 NTP server rack he helped design, I was hooked.

[Read more…]
